Schmidt-Rubin Detailed Comparison Page


Schmidt-Rubin 1889
Barrel Length - 30.7 inches: 3-groove, RH, concentric rifling, 1 in 10.63
Overall Length - 51.25 inches
Weight - 10.69lbs empty
Action - Schmidt-Rubin Straight Pull
Caliber - 7.5x53.5 Swiss (GP90 & GP 90/03)
              7.5x54.5 Swiss (GP90/23)
Capacity - 12 round detachable box magazine

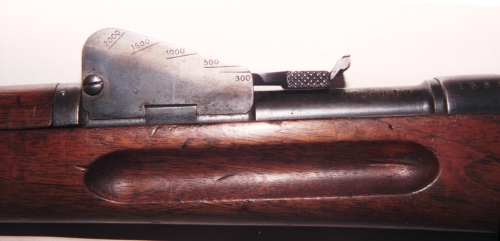

Sights - Quadrant sight graduated to 2000m
Total Production : ~212,000

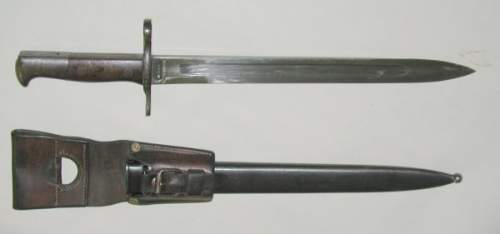

Bayonet: Model 1889




Schmidt-Rubin 1896/11 Rifle
Barrel Length - 30.7 inches: 4-groove, RH, concentric rifling, 1 in 10.63"
(approx 6000 96/11s had a twist rate of 1 in 9")
Overall Length - 51.2 inches
Weight - 9.94lbs empty
Action - Schmidt-Rubin Straight Pull
Caliber - 7.5x55 Swiss (GP11)
Capacity - 6 round detachable box magazine
Sights - Tangent-leaf sight graduated to 2000m
Total Production : 127,000

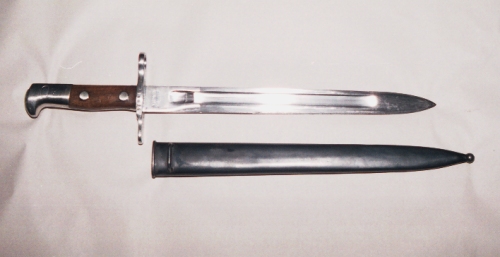

Bayonet: Models 1889,1889/96,1906 & 1911


1906 Bayonet



Schmidt-Rubin 1911 Rifle
Barrel Length - 30.7 inches: 4-groove, RH, concentric rifling, 1 in 10.63"
(S/Ns 350001 to 365000 had a twist rate of 1 in 9")
Overall Length - 51.5 inches
Weight - 10.03lbs empty
Action - Schmidt-Rubin Straight Pull
Caliber - 7.5x55 Swiss (GP11)
Capacity - 6 round detachable box magazine
Sights - Tangent-leaf sight graduated to 2000m
Total Production : 133,000
Bayonet: Model 1911


Model 1911 Bayonet




Schmidt-Rubin 1911 Carbine
Barrel Length - 23.3 inches: 4-groove, RH, concentric rifling, 1 in 10.63
Overall Length - 43.6 inches
Weight - 8.85lbs empty
Action - Schmidt-Rubin Straight Pull
Caliber - 7.5x55 Swiss (GP11)
Capacity - 6 round detachable box magazine
Sights - Tangent-leaf sight graduated to 1500m
Total Production : 184,200
Bayonet: Models 1892 Spike Bayonet, 1911, 1918, 1906 Pioneer (Sawback)  and 1914 Pioneer (Sawback)

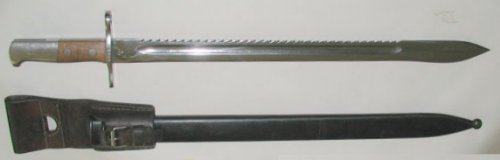

Model 1914 Pioneer Bayonet




Model 1931 Short Rifle (AKA K31)
Barrel Length - 25.65 inches: 4-groove, RH, concentric rifling, 1 in 10.63
Overall Length - 43.6 inches
Weight - 8.85lbs empty
Action - Simplified Schmidt-Rubin Straight Pull
Caliber - 7.5x55 Swiss (GP11)
Capacity - 6 round detachable box magazine
Sights - Tangent-leaf sight graduated to 1500m
Total Production - 582,230
Bayonet: Models 1918, 1918/55 and 1914 Pioneer (Sawback)


1918 Bayonet



Model 1931/55 Sniper Rifle (AKA Zf. k31)
Barrel Length - 25.65 inches: 4-groove, RH, concentric rifling, 1 in 10.63
Overall Length - 47.55 inches
Weight - 13.5lbs empty (with scope attached)
Action - Simplified Schmidt-Rubin Straight Pull
Caliber - 7.5x55 Swiss (GP11)
Capacity - 6 round detachable box magazine
Sights - Tangent-leaf sight graduated to 1500m
Total Production - 4150
Bayonet: Models 1918, 1918/55 and 1914 Pioneer (Sawback)

For addtional detailed photos go to the K31/55 Sniper Rifle Photo Gallery

Click on picture for larger image


 1889 1896/11 1911 Rifle 1911 Carbine K31 Short Rifle K31/55 Sniper Rifle

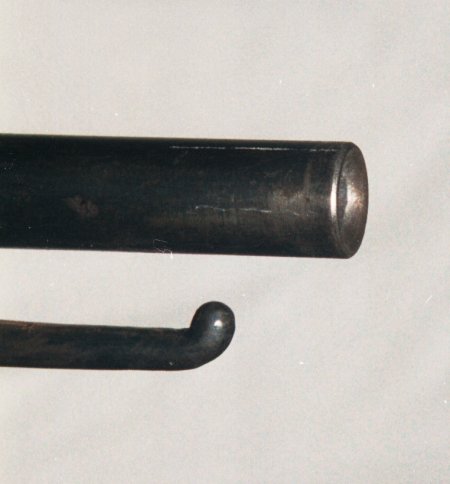

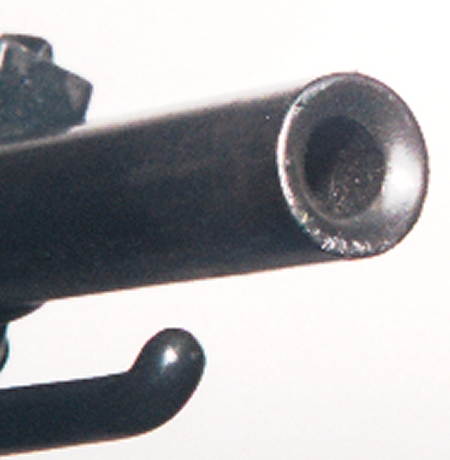

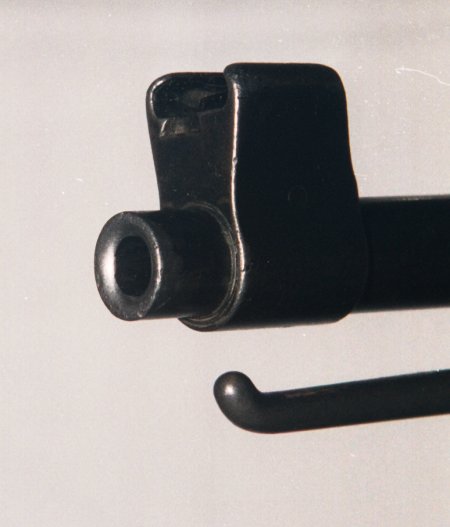

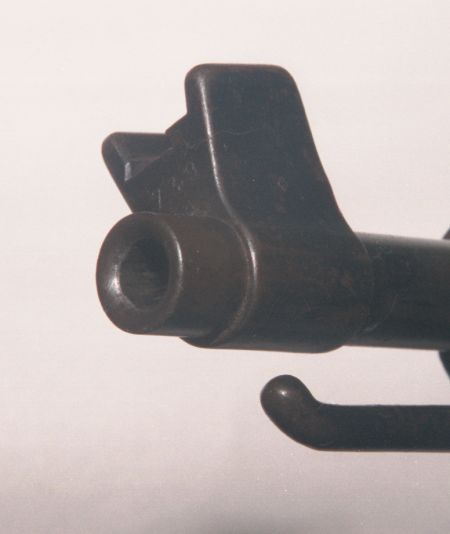

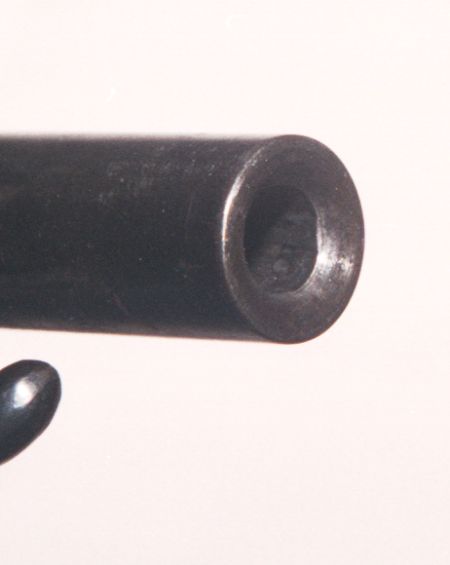

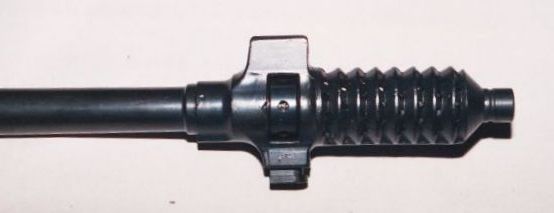

Muzzle Crown Click to view larger image Click to view larger image Click to view larger image Click to view larger image Click to view larger image Click to view larger image

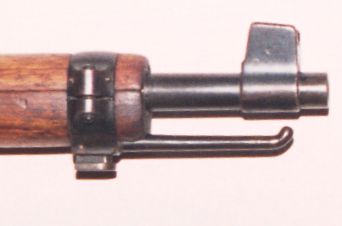

Front Sights Click to view larger image Click to view larger image Click to view larger image Click to view larger image Click to view larger image Click to view larger image
Rear Sights (Side) Click to view larger image Click to view larger image Click to view larger image Click to view larger image Click to view larger image Click to view larger image

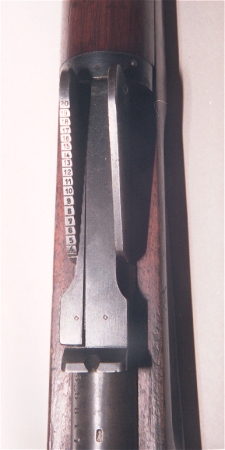

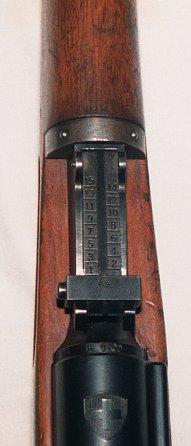

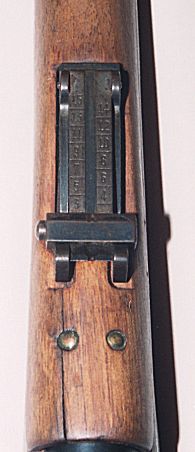

Rear Sights (Top) Click to view larger image Click to view larger image Click to view larger image Click to view larger image Click to view larger image Click to view larger image

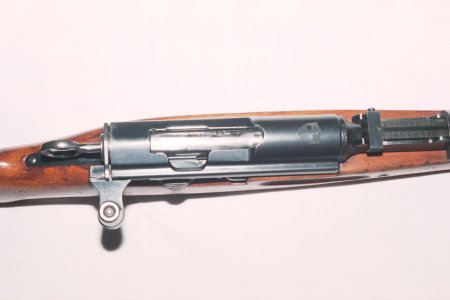

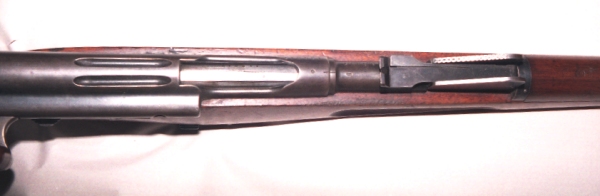

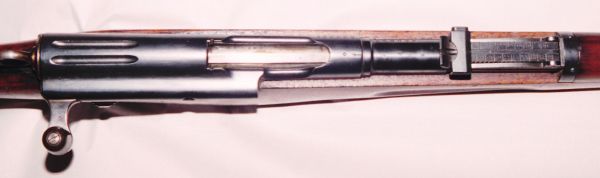

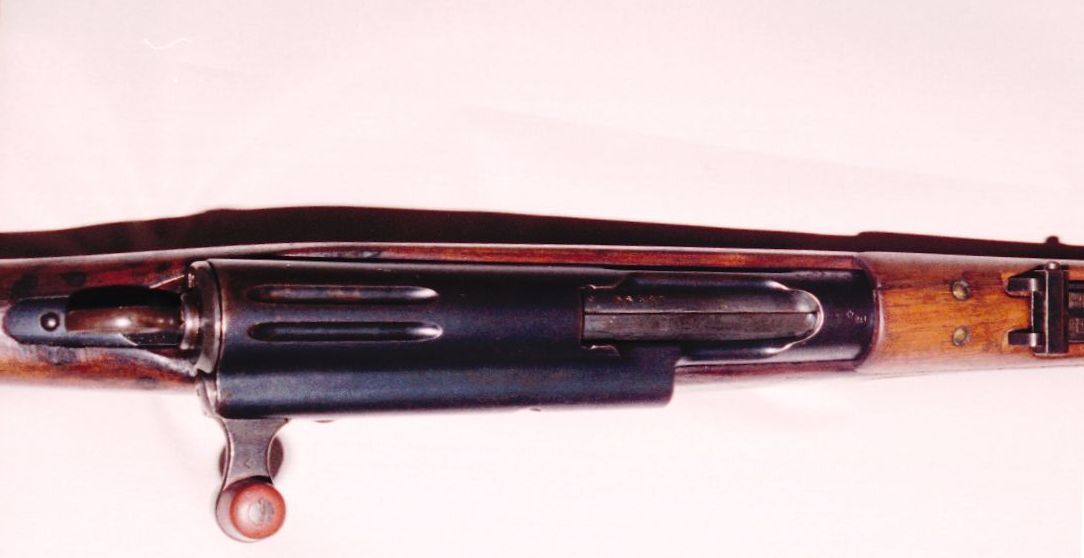

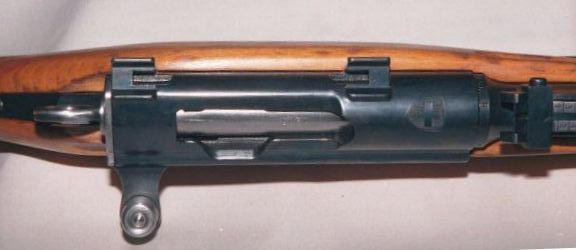

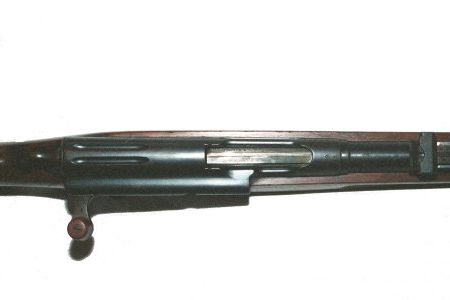

Receivers (Top) Click to view larger image Click to view larger image Click to view larger image Click to view larger image Click to view larger image Click to view larger image

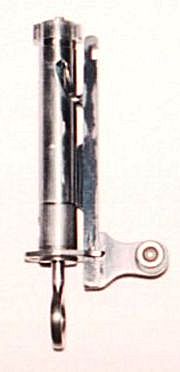

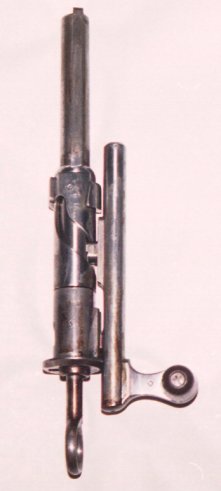

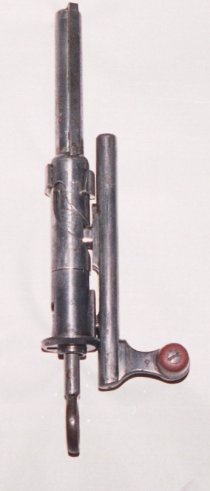

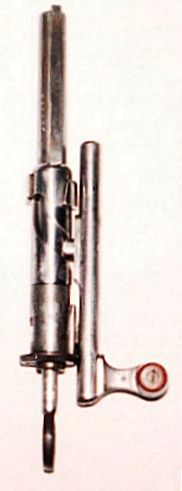

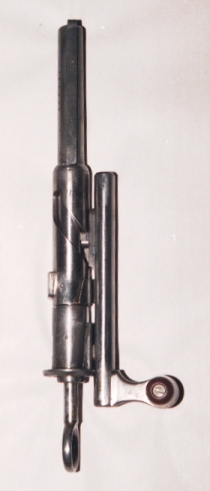

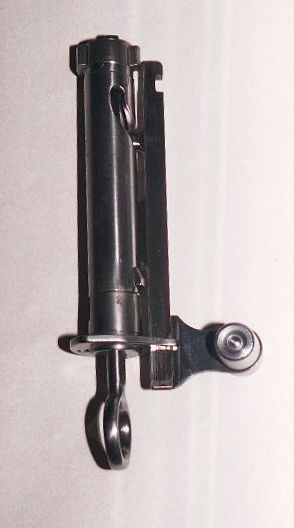

Bolts Click to view larger image Click to view larger image Click to view larger image Click to view larger image Click to view larger image Click to view larger image

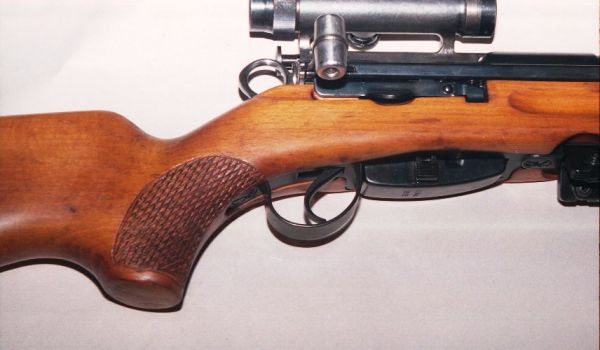

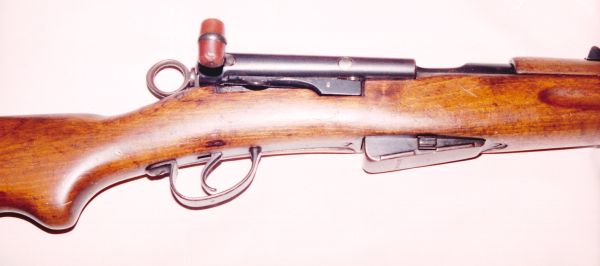

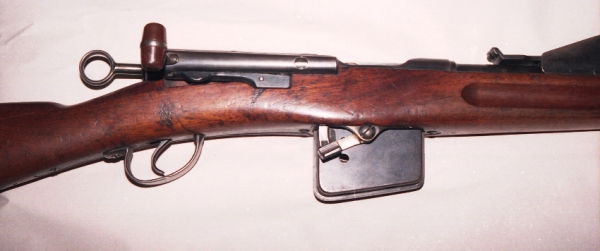

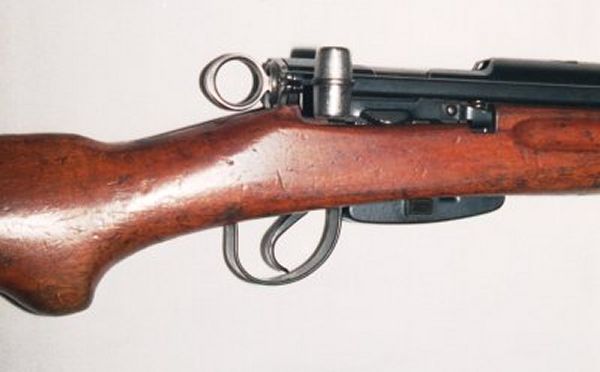

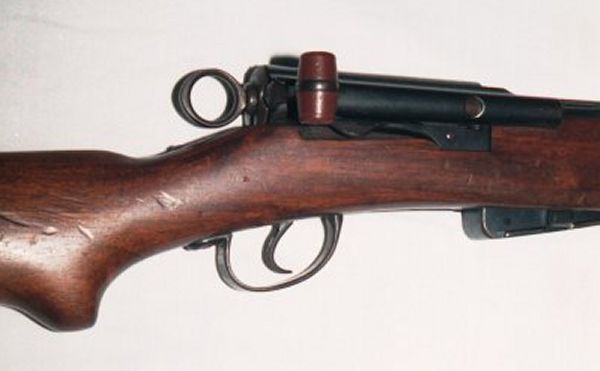

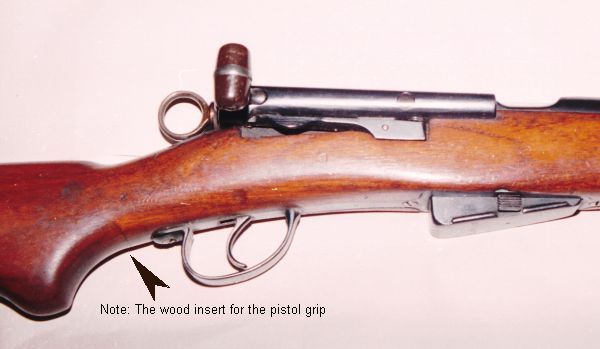

Trigger & Magazine Click to view larger image Click to view larger image Click to view larger image Click to view larger image Click to view larger image Click to view larger image

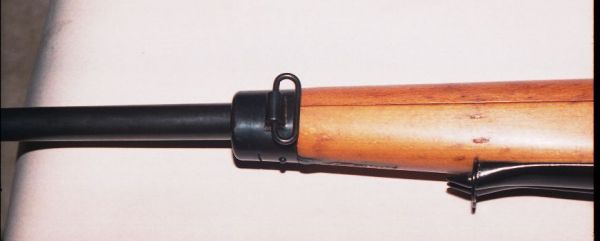

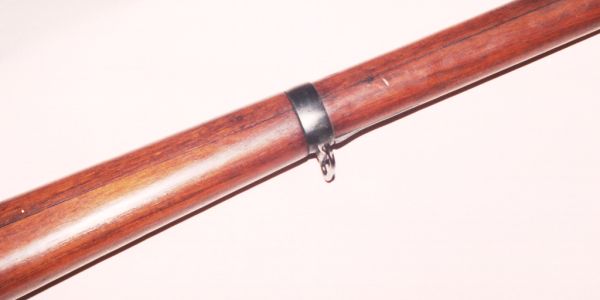

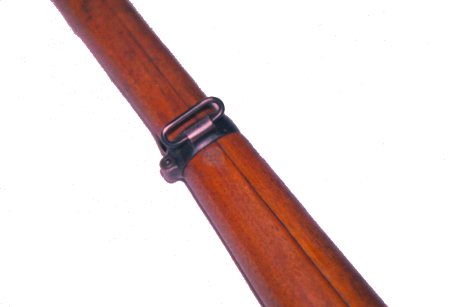

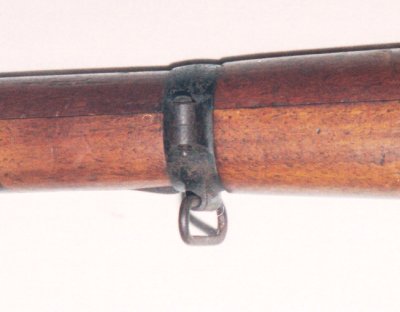

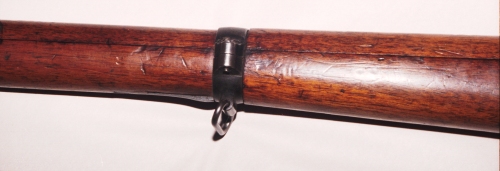

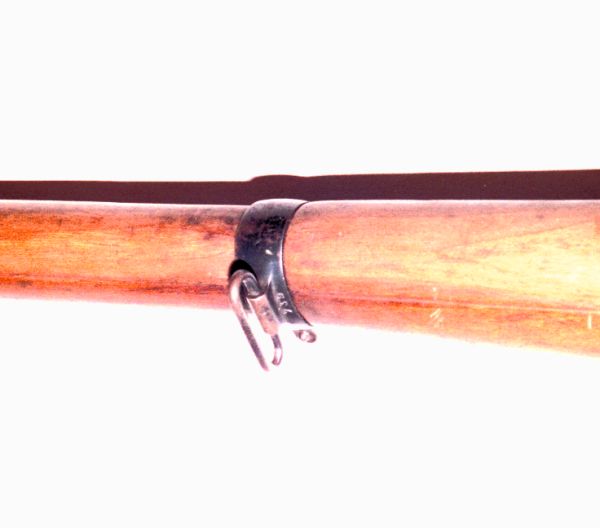

Front Sling Swivels Click to view larger image Click to view larger image Click to view larger image Click to view larger image Click to view larger image Click to view larger image

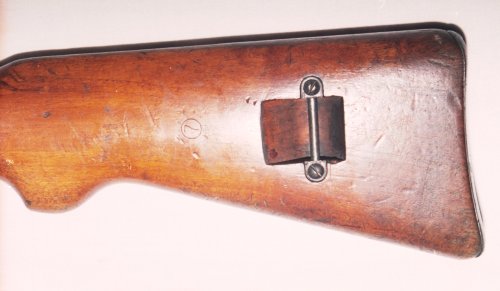

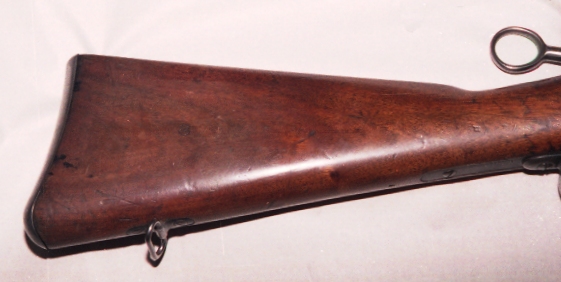

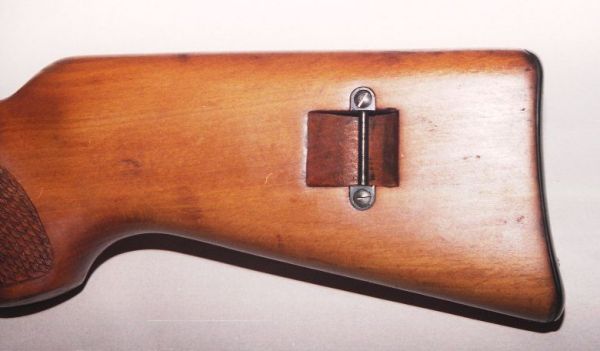

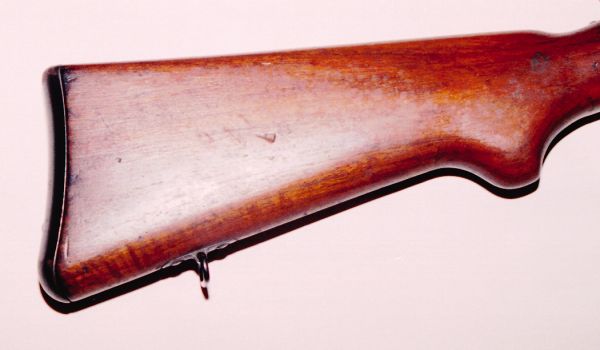

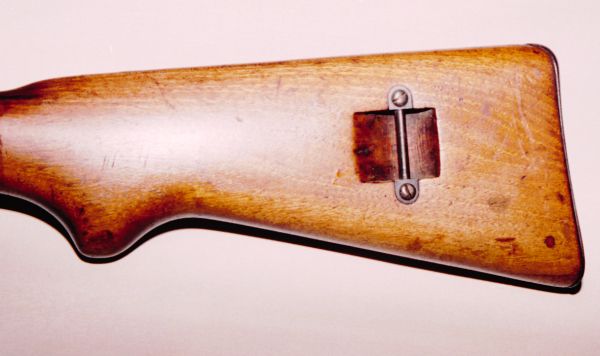

Rear Sling Swivels Click to view larger image Click to view larger image Click to view larger image Click to view larger image Click to view larger image Click to view larger image

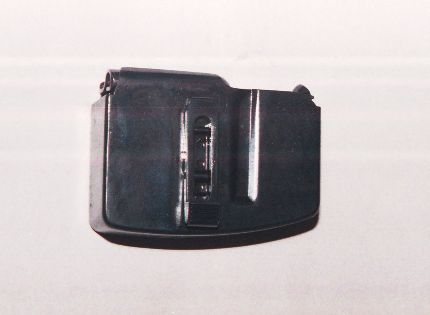

Magazines Click to view larger image Click to view larger image Click to view larger image Click to view larger image Click to view larger image Click to view larger image
